Watson-McDaniel

BACK PRESSURE PILOTS FOR HD REGULATORS

Back pressure pilots for HD regulating valves.

$1,155.70

Fast shipping

Across North America

Secure checkout

Your information is safe

Talk to an expert

Get product support

SKU PBP Categories Pilots for HD Regulators, Watson Macdaniel Tags Pilots for HD Regulator, Watson McDaniel Brand: Watson-McDaniel

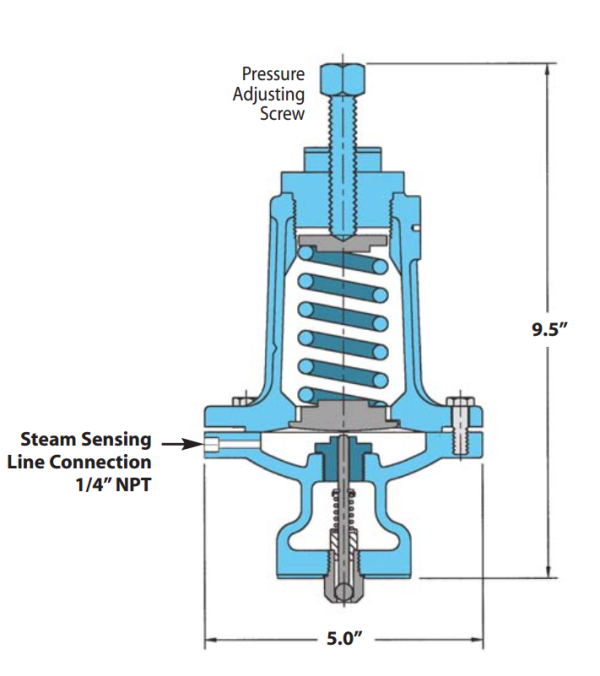

BACK PRESSURE PILOT The “PBP” Back-Pressure Pilot used with the HD regulator, maintains upstream pressure in steam systems. These regulators are commonly used to supply flash steam to low pressure mains. The PBP Pilot can maintain downstream pressure to ± 1 PSIG Model: PBP Pilot Body & Cover Material: Ductile Iron Max Inlet Pressure: 300 PSIG Back Pressure Range: 10-200 PSIG Minimum Inlet Pressure: 15 PSIG (w/ Std Main Valve) 5 PSIG (w/ Low Pressure Main Valve) Accuracy: ± 1 PSIG

Click here for more product details
