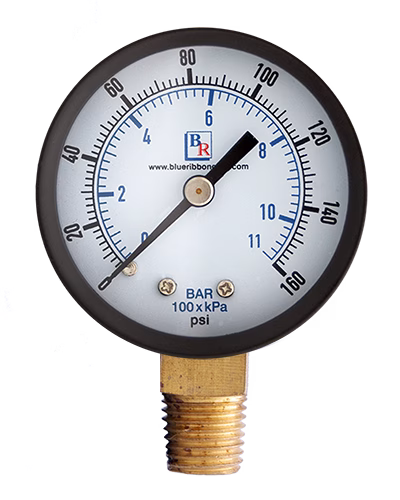

Model BR100D Steel Utility Gauges from Blue Ribbon Corporation offer an inexpensive utility gauge for the broad commercial market. The gauges are suitable for air, water, oil, gas or any other media not corrosive to brass. Other connection locations, mounting styles and accessories are available upon request.  Units are also ready for immediate shipment upon request.

Features:

• Dial Sizes: 1½", 2", 2½", and 4"
• An inexpensive utility gauge for the broad commercial market
• Suitable for air, water, oil, gas or any other media not corrosive to brass
• Available in bottom or center connect 1" or ¼" (M) NPT
• Accuracy: 3-2-3%

Specifications:

• Black Steel Case
• Brass Socket and Movement
• Dial Sizes: 1½", 2", 2½", and 4"
• Phosphor Bronze Bourdon Tube
• Dry, Non-Fillable
• Connection Sizes:
  1/8" (M) NPT on 1½" and 2"
  1/4" (M) NPT on 2" and 2½"
• Accuracy: 3-2-3%
• Ambient Temperature: -50 ºF to +160 ºF
• Dual Scale: PSI & BAR (x100=kPa)
• IP52 Enclosure
• Overpressure: 25% FSO
• Working pressure: 75% FSO

Field Options:

• U-clamp Mount (UC)
• Front Flange Mount (FF)
• Back Flange Mount (BF)
• Plastic Case
