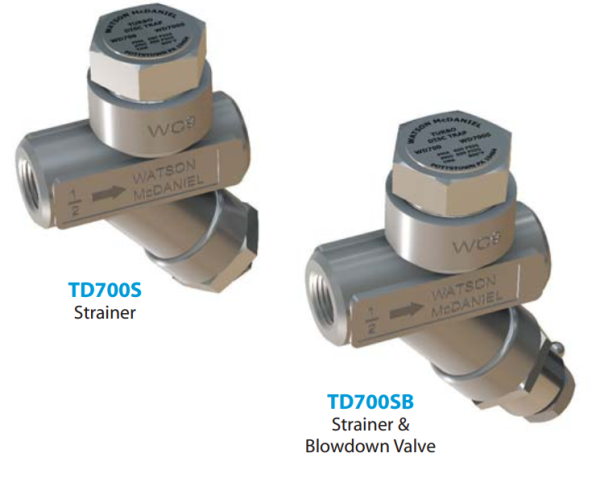

TD700SB THERMODYNAMIC TRAP W/ STRAINER & BLOWDOWN VALVE (0-650PSI)
(1/2″-1″) TD700SB Thermodynamic steam traps with Strainer & Blowdown valve Stainless Steel – 650 PSI
Price range: $903.00 through $1,304.10
Fast shipping
Across North America
Secure checkout
Your information is safe
Talk to an expert
Get product support
TD700SB THERMODYNAMIC TRAP W/ STRAINER & BLOWDOWN VALVE 650 PSI

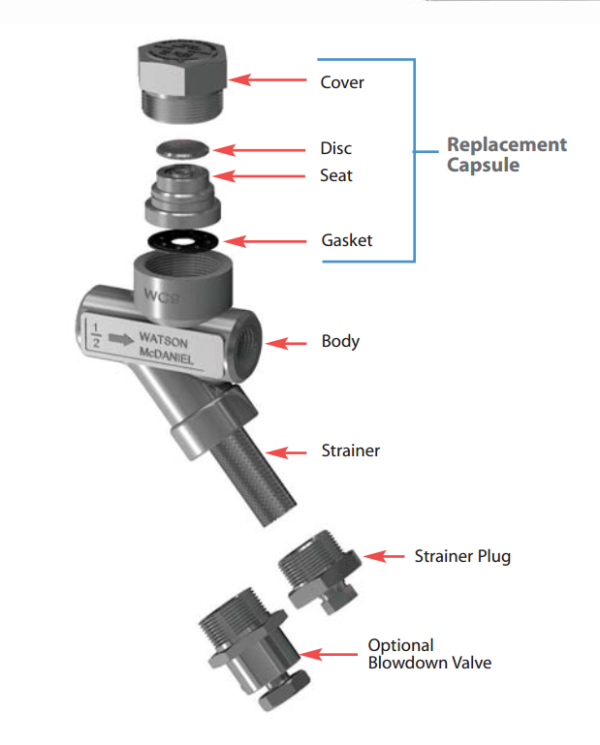

DRIP, TRACER: The TD700S Thermodynamic Steam Trap is commonly used as a drip trap on steam mains and steam supply lines. These traps are used on tracing applications; however, thermostatic traps are normally recommended for this service. Supplied with an integral strainer and optional blowdown valve to protect the trap from contamination. The internal working mechanism of the WD700S can be completely replaced while the trap body remains in line. Ideal for outdoor applications that are subject to freezing and for superheated steam conditions.
Note: Model TD700HS is a high-pressure version of the standard WD700S model.
Model: TD700S
Body Material: Chrome-Moly Alloy Steel
Max Operating Pressure: 600 PSIG
Max. Capacity: 1,750 lbs/hr

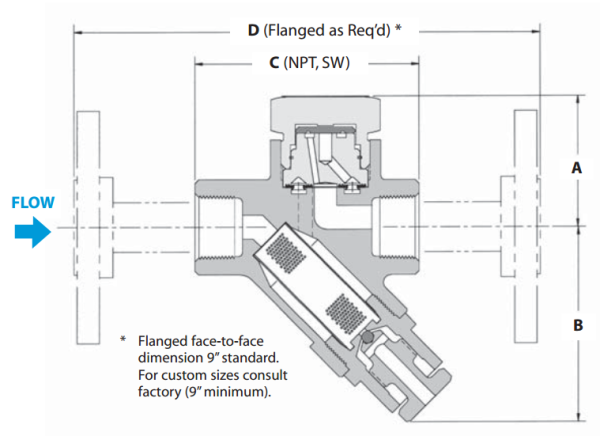

Sizes : 1/2″ – 1″
Connections: NPT, SW, FLG
