TD900S THERMODYNAMIC STEAM TRAP WITH STRAINER (0-900 PSI)
(1/2″-1″) TD900S Thermodynamic steam traps with Strainer Stainless Steel – 900 PSI
Price range: $1,653.40 through $1,929.20
Fast shipping
Across North America
Secure checkout
Your information is safe
Talk to an expert
Get product support

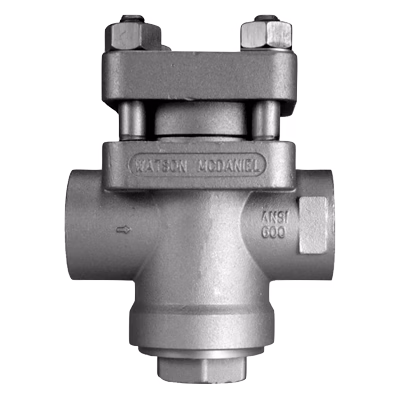

TD900S THERMODYNAMIC STEAM TRAP WITH STRAINER (0-900 PSI)

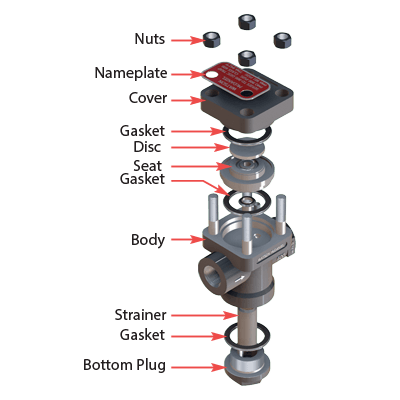

DRIP: TD900S Model steam traps, capable of handling pressures up to 900 PSIG, are used in drip application such as draining condensate from steam mains and steam supply lines. The complete internal working mechanism can be replaced while the trap body remains connected in line. All models contain an integral strainer for protection against dirt and scale. These traps are suitable for outdoor applications that are subject to freezing as well as superheated steam conditions.
Model: TD900S
Body Material: Low Carbon Chrome-Molly
Max Operating Pressure: 900 PSIG
Max. Capacity: 968 lbs/hr

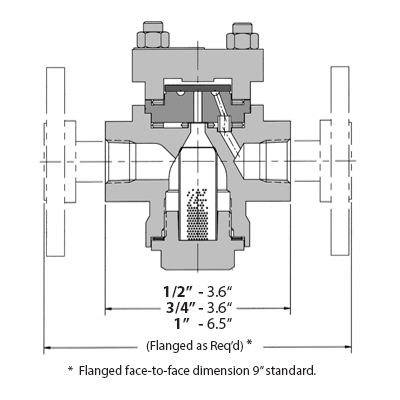

Sizes : 1/2″ – 1″
Connections: NPT, SW
