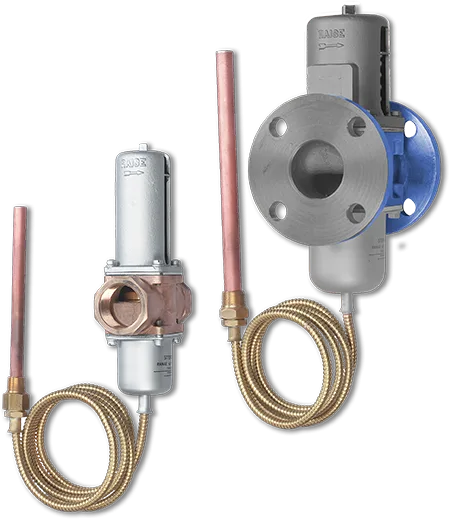

Sterlco 56-T 3/8″ Temperature Actuated Water Regulating Valve
The Sterlco® 56-T Series Temperature Actuated Water Regulating Valve delivers reliable, self-powered temperature control with precise regulation and durable construction for demanding industrial applications.
Price range: $1,015.00 through $3,275.00
Across North America
Your information is safe
Get product support
The Sterlco® 56-T Series is a temperature actuated, self-powered water regulating valve designed to automatically regulate cooling water and other fluids based on temperature.
Ideal for:
- Hydraulic power packaged equipment
- Hydraulic presses
- Industrial cooling systems
- Water-cooled equipment
- Process cooling applications
Key Features:
- Precise temperature control from 40°F to 275°F
- Sizes from 3/8″ to 2-1/2″
- Heavy-duty direct-acting bellows
- Replaceable Buna-N seat disc
- Replaceable seat beads
- 6 ft. standard capillary
- Mounting in any position
- Factory tested for dependable performance
Sterlco® valves are designed for dependable temperature and fluid control in demanding industrial applications. Each 56-T Series valve is factory tested three times in different temperature baths to help ensure reliable performance.
| Manufacturer | Sterlco® |
|---|---|
| Product Series | 56-T Series |
| Product Type | Temperature Actuated Water Regulating Valve |
| Sizes | 3/8″ to 2-1/2″ |
|---|---|
| Fluid Pressure | Up to 125 PSI for 3/8″–1-1/4″; up to 150 PSI for 1-1/2″–2-1/2″ |
| Body | Brass alloy (3/8″–1-1/2″); Cast iron (2″–2-1/2″) |
| Seat Disc | Replaceable Buna-N |
| Seat Bead | Stainless steel or brass, depending on valve size |
| Capillary | 6 ft. standard |
| Temperature Ranges | 40°F–275°F depending on model |
| Mounting | Any position |
| Cv | 2.06–26 depending on size |
