AIR PILOT FOR HD REGULATING VALVE
Air pilot for HD regulating valves. PA-1 (3-125 PSI) PA-4 (3-200 PSI) PA-6 (20-200 PSI)
CAD CADPrice range: $949.20 CAD through $1,560.30 CAD
- Fast shippingAcross North America
- Secure checkoutYour information is safe
- Talk to an expertGet product support
AIR PILOTS FOR HD REGULATING VALVES

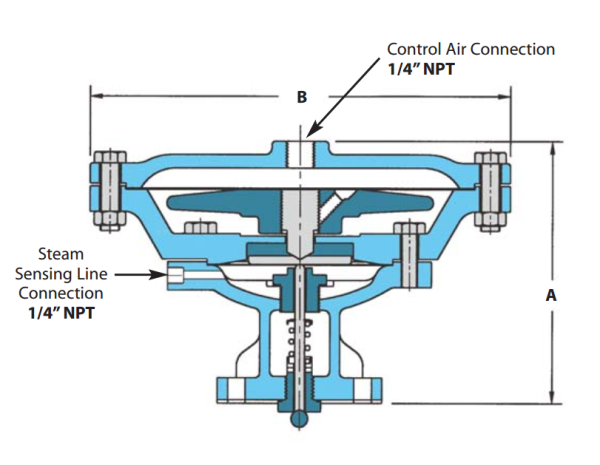

The “PA” Air Pilot is used with the HD Regulator to control steam pressure on steam mains and process equipment. The “PA” Air Pilot can also be used in conjunction with the PTL or PTR pneumatic temperature controllers for controlling temperature in process applications. The principal advantage the “PA” Air Pilot over standard spring loaded pilots is that pressure adjustments to the regulator can be made from a remote location. A regulator that is placed in a difficult to reach or inaccessible location can be adjusted by a remote control panel board placed in an accessible location.
Note: Temperature Control Range: 0-350°F when used with PTL & PTR Pneumatic Temperature Controllers
Model: PA Pilot
Body & Cover Material: Ductile Iron
Max Inlet Pressure: 300 PSIG
Reduced Outlet Pressure Range: 3-200 PSIG
Minimum Inlet Pressure:
15 PSIG (w/ Std Main Valve)
5 PSIG (w/ Low Pressure Main Valve)
Control Air Pressure Range: 3-125 PSIG
Accuracy: ± 1 PSIG
