Features:

• Two screws permit 180° case rotation and stem positioning in 10° increments, for easy viewing adjustment
• Available in 3.5” and 6” stem lengths
• Blue spirit filled thermometer set inside V-shaped aluminum scale with high-contrast black on white numeric scale for easy reading
• NIST traceable calibration with guaranteed accuracy to ± one scale devision
• Black enameled die cast aluminum construction with glass front minimizing dirt and dust build up for ranges up to 400 °F (200 °C)
• Optional plastic face • 1¼–18 UNEF swivel nut connection assembly with tapered bulb chamber for proper well seating
• Available in Straight Form and 90° Back Angle

Specifications:

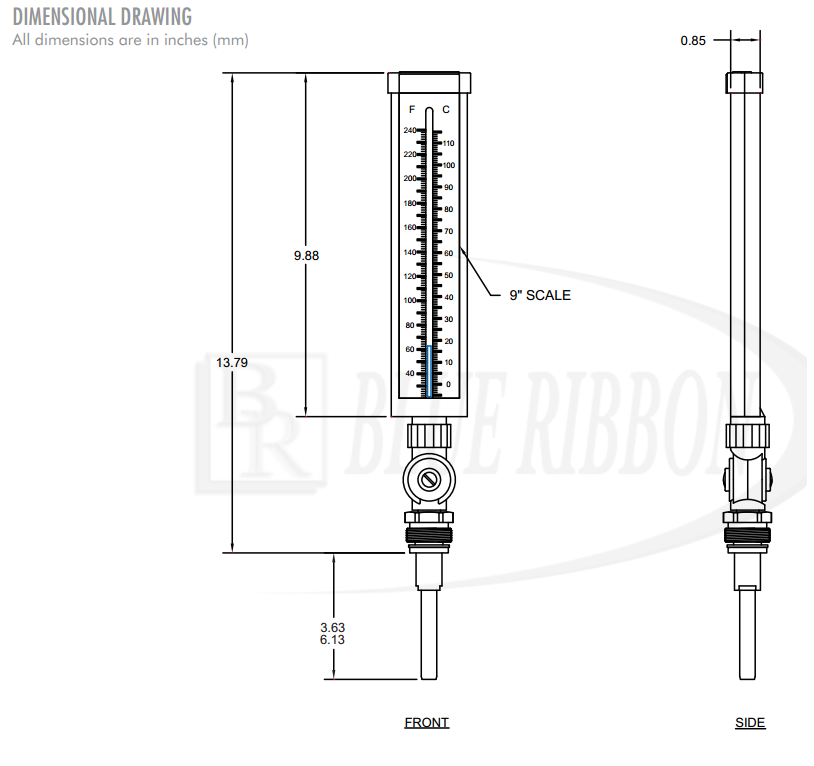

• Dial: 9" (230mm) aluminum
• Lens: Glass • Connection: 1¼–18 UNEF swivel nut 3.5” or 6” stem length (see ordering guide)
• Scale: Aluminum painted white with black markings
• Bulb Chamber: Tapered cast aluminum with graphite fill
• Tube, Sensing Liquid: Glass, spirit organic fluid
• Adjustment: Fully adjustable
• Accuracy: ±1%
• Enclosure Rating: IP54

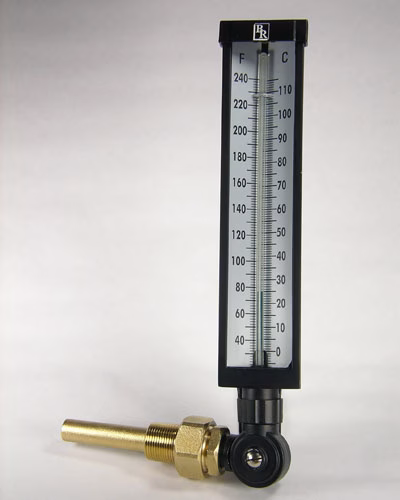

Shown with brass thermowell
