DESCRIPTION

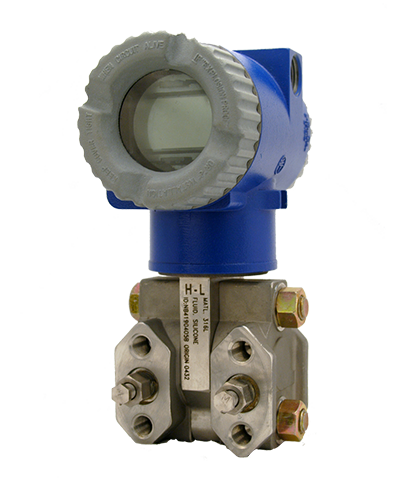

The Model BRGPIDP from Blue Ribbon Corporation is a rugged, low range / high line process differential pressure transmitter that provides precise measurement in a 4-20 mA output with optional HART communication. Ranges as low as 0.5” WCD are available with 3,625 PSI of line and single-sided proof pressure. Internal push button adjustments for rangeability and configuration are available, as well as integrated LCD display.

FEATURES:

• High accuracy up to ±0.075% FSO
• Static line and single sided overpressure protection up to 3,625 PSI (250 BAR)
• 4-20 mA output, available with or without HART®
• 30:1 turndown
• Optional LCD display with push button adjustment
• Differential pressure ranges from 0 to 0.5” WC thru 0-3K PSID (207 BAR)

APPLICATIONS:

• Chemical processing
• Sanitary tank level
• Pulp and paper
• Marine
• Food and beverage

FIELD OPTIONS:

• Push button adjust with LCD display
• Exotic wetted parts
• 1 to 5 Vdc low power
