HD PILOT-OPERATED REGULATOR (DUCTILE IRON)
(1/2″ – 6″) HD PILOT-OPERATED REGULATOR
Price range: $1,339.80 through $19,558.70
Fast shipping
Across North America
Secure checkout
Your information is safe
Talk to an expert
Get product support

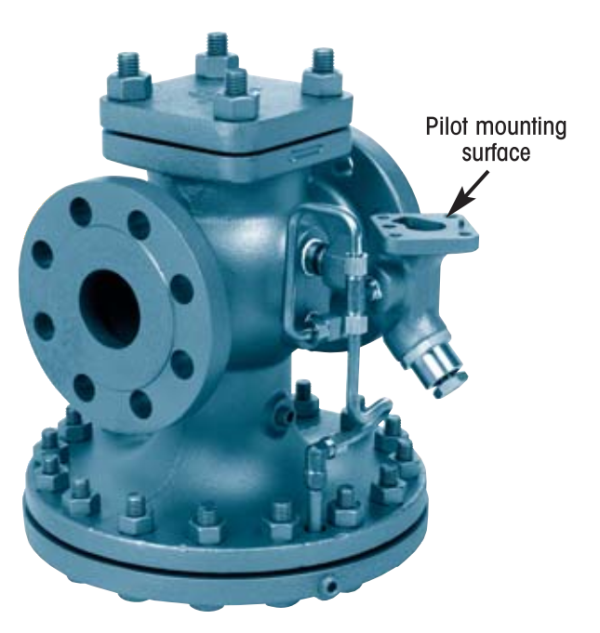

HD PILOT-OPERATED REGULATOR DUCTILE IRON
The Watson McDaniel HD-Series Pilot Operated Regulators were designed for extremely accurate control of temperature and pressure in steam service applications. The HD-Series is made of Ductile Iron for extended pressure and temperature ratings. These regulators use several different control pilots, which can be attached to the valve to control pressure, temperature, or a combination of both. The different control pilots can be added or removed from the regulator body. This modular design adds to the versatility of this product. The most common options include the P-Pilot for pressure reducing, and the T-Pilot for temperature control.

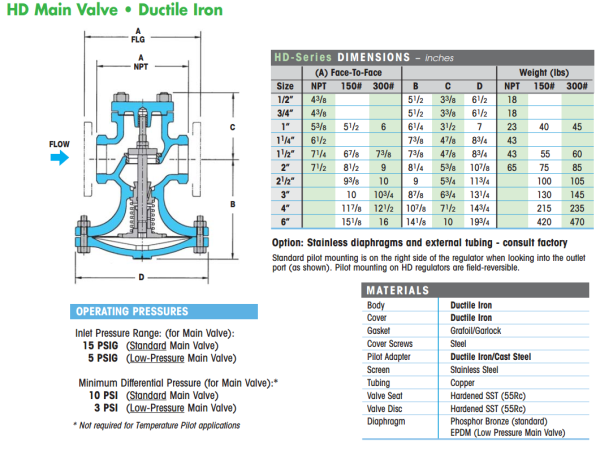

Model: HD Series
Body Material: Ductile Iron
Max Operating Pressure: 300 PSIG
Sizes: 1/2″ – 6″
Connections: Threaded: (1/2” – 2”), 150# FLG (1” – 6”), 300# FLG (1” – 6”)
Click here for more product details
