Universal Steam Trap Modules THERMODYNAMIC TRAP MODULE LOW CAPACITY (0-450 PSI)
Original price was: $385.00.$250.25Current price is: $250.25.
Across North America
Your information is safe
Get product support
THERMODYNAMIC TRAP MODULE LOW CAPACITY (0-450 PSI)

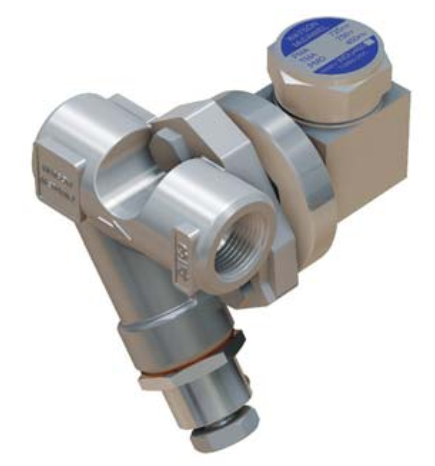

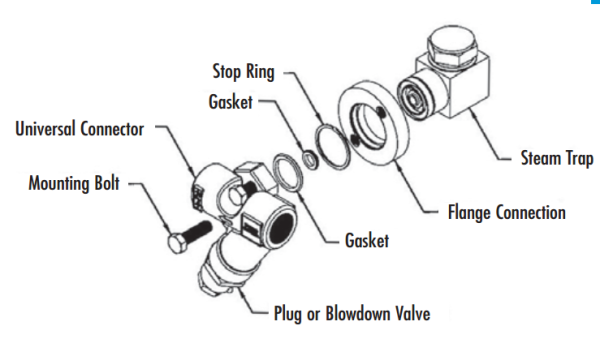

DRIP, TRACER: The WD450 “Top Mount” Thermodynamic Steam Trap Module mounted to a universal connector can be used anywhere conventional thermodynamic steam traps are used. Used on drip, tracing and light process applications where removal of air is not critical. The WD450 trap module mounts to any Universal Connector. The WD450 is recommended for horizontal piping only so that cap can be oriented upwards, as shown.
Note: Model WD450L is a lower-capacity version of the standard WD450 model.
Model: WD450
Body Material: Stainless Steel
Max Capacity: 1,630 lbs/hr
Max Operating Pressure: 450 PSIG
Connections: Fits WU450 Series Universal Connectors
